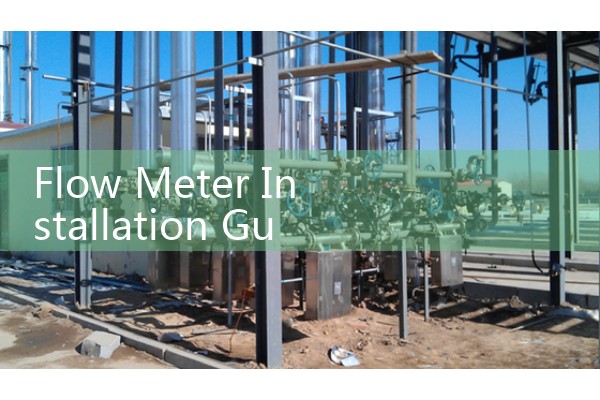

Flow Meter Installation Guidelines Hub: Avoiding Air Pockets and Trapped Sediments
Quick Answer: Air pockets and trapped sediments reduce flow meter accuracy, damage moving parts, and cause signal drift. Install meters in full pipe sections, add back pressure where needed, and use strainers for dirty fluids. Send us your pipe size in DN, pressure in bar, temperature in °C, and flow range to get a model and quote from Silver Automation Instruments.
This guide covers Coriolis mass flow meters, electromagnetic flow meters, ultrasonic flow meters, vortex flow meters, oval gear flow meters, thermal mass flow meters, pressure transmitters, and paperless recorders. Most installation problems we see on customer sites are not from the meter itself. They come from air pockets, sediment, poor straight runs, or wrong orientation.
Why Air Pockets and Trapped Sediments Cause Field Failures
An air pocket changes the flow cross section. It does not need to be large. A 10 mm bubble in a DN25 tube can shift a Coriolis meter density reading by several percent. In a magmeter, air at the electrode level opens the circuit. The 4-20 mA HART signal drops to zero or jumps around.
Trapped sediment works like a slow-moving problem. It coats electrodes, fills gear pockets, blocks impulse lines, and insulates thermal sensors. In many cases the meter calibration is fine on a test bench. The installation creates the error.
Here is the thing. Most engineers skip one detail. They install a meter at the highest point of a line because it looks easy to access. That point is exactly where gas collects on liquid lines. Put the meter somewhere else.
Electromagnetic Flow Meter Installation Rules
Electromagnetic flow meters need a full pipe. The electrodes must be in contact with the liquid. Air pocket at the top of a horizontal pipe can expose the electrodes and cause a false zero. Install the meter in a vertical upward line if possible. If horizontal installation is the only option, place the meter at a low point and keep a downstream back pressure valve.
For wastewater, sludge, or seawater, sediment can coat the electrodes. A 0.5 mm coating of grease or scale can shift the reading by 2 percent. Use a flushing port or clean the electrodes during shutdown. For a DN80 magmeter on a 100 m3/h water line, keep 5D straight run upstream and 3D downstream. Ground the meter body to avoid stray voltage noise.
Last year a customer in Vietnam installed a DN80 electromagnetic flow meter on a partially filled drain line. The output jumped between 0 and 12 m3/h. We moved the meter to a vertical riser and added a 2 bar back pressure valve downstream. The signal settled within 1 percent of the reference flow.
Coriolis Mass Flow Meter Installation and Air Elimination
Coriolis meters read mass directly. They handle density changes well but not large gas bubbles in liquid streams. Air in the vibrating tubes adds damping and shifts the density reading. For liquid service, install the meter in a vertical upward line or at a low point with enough back pressure. Do not install it on the suction side of a pump without a clear reason.
Use a back pressure valve or an elevation drop downstream to keep the meter full. A DN25 Coriolis meter on a 2 m3/h batch line needs at least 0.5 bar back pressure at the outlet to suppress bubble formation. For viscous food products or resin, air slugs can also hammer the tube and reduce bearing life.
Ultrasonic Flow Meter Installation Notes
Ultrasonic flow meters need clean acoustic paths. Sediment on the transducer face reduces signal strength. Air bubbles scatter the sound beam. For inline ultrasonic meters, install in a pipe section that stays full. For clamp-on meters, choose a spot with no coating, no rust, and no air pockets.
Straight run is critical. Use 10D upstream and 5D downstream for a single-path ultrasonic meter. For a DN100 clamp-on meter in a cooling water line, a 20D upstream run from a pump gives a stable signal. If the pipe is only half full, the meter will not read correctly.
Vortex Flow Meter Installation and Strainer Selection
Vortex flow meters use a bluff body to create shedding vortices. Sediment can build up on the bluff body and change the shedding frequency. The result is a flow reading that drifts low over time. In dirty steam or water lines, install a 100 mesh Y strainer upstream. For clean gas, a filter is still wise.
Use 15D straight run upstream and 5D downstream as a baseline. Pipe vibration can create false vortex signals. Brace the pipe if the pump is close. A chemicals plant in Saudi Arabia found a DN50 vortex meter read 8 percent high because sediment from a he
_600x400.jpg)
Oval Gear Flow Meter Installation for Viscous Fluids
Oval gear meters are positive displacement devices. Anything solid that enters the gear pocket will jam or wear the gears. Install a strainer or filter upstream. The strainer mesh depends on the fluid. For diesel or light oil, a 60 mesh strainer is common. For resin or heavy fuel oil, a 100 mesh strainer is safer.
Air slugs are also a problem. A 0.5 L air slug in a DN25 oval gear meter on a 50 cP resin line can make the gears spin fast and then slow. The meter overcounts the batch. Keep the line full and add a small air eliminator if needed. We worked with a paint manufacturer in Southeast Asia that had a 4 percent drift on a resin batch. A 100 mesh Y strainer upstream brought the repeatability back to 0.5 percent.
Thermal Mass Flow Meter Installation for Gas Lines
Thermal mass flow meters measure gas flow by heat transfer. Moisture, oil, or dust on the sensor element changes the heat loss. Install a coalescing filter upstream for compressed air lines. For biogas or flare gas, use a filter that handles condensate. Do not install the meter at the low point of a gas line where liquid collects.
Insertion meters need the correct probe depth. A probe inserted too shallow reads low. A probe inserted too deep can block flow and read high. Follow the manufacturer insertion depth for the pipe ID. Use 20D upstream and 10D downstream where possible.
Pressure Transmitter and No Paper Recorder Placement
Pressure transmitters and paperless recorders support the flow meter signal. Impulse lines on liquid flow measurement should slope downward to the transmitter or upward to a vent. If a gas bubble stays in an impulse line, the pressure reading shifts by the height of the liquid column. Slope the line at 1:10 and add a vent valve at the high point.
For slurry or sediment-heavy lines, consider a diaphragm seal or a remote seal pressure transmitter. A paperless recorder can log 4-20 mA HART signals from the flow meter and a PT100 temperature sensor. Keep signal cable at least 300 mm away from variable frequency drive cables. This stops induced noise from corrupting the recorder trace.
Common Installation Mistakes We See on Customer Sites
Do not install a magmeter on a partially full drain line. Do not put a Coriolis meter right after a pump without back pressure. Do not leave construction debris in new pipe before startup. Flush the line for 30 minutes before mounting an inline meter. Do not wrap thread tape past the first two threads on threaded connections. Loose tape pieces can wrap around a gear or stick on a bluff body.
We have seen many sites use a flexible hose right before a flow meter. The hose can collapse or vibrate, and it disturbs the flow profile. Use rigid pipe for the straight run. Place valves downstream of the meter to keep pressure on the line. Upstream valves can create swirl and trapped gas.
FAQ
What is the best orientation for an electromagnetic flow meter to avoid air pockets?
Install the meter in a vertical upward line. The liquid pushes gas up and out. If you must use a horizontal line, place the meter at a low point and add back pressure.
How do I remove trapped sediment from a flow meter?
Flush the line with clean water or a compatible solvent. Add a Y strainer upstream to catch solids before they reach the meter. For magmeters, clean the electrodes. For oval gear meters, open the cover and clean the gears if the product allows it.
Can a Coriolis meter handle air bubbles in liquid lines?
Small entrained bubbles are usually acceptable. Large air pockets are not. They shift the density reading and can damage tube drive stability. Use back pressure and avoid high point installation.
What straight run does a vortex flow meter need?
Use 15D upstream and 5D downstream as a starting point. More straight run helps if there is a pump, valve, or elbow close by.
How do I specify a flow meter to avoid installation problems?
Send your pipe size in DN, fluid name, flow range, pressure in bar, temperature in °C, and signal type. Silver Instruments replies with a model, a quote, and an installation note for your specific line.
Get in contact with Silver Automation Instruments. Send your process data and we will recommend a meter for your installation. You need pipe size in DN, pressure in bar, temperature in °C, flow range in m3/h or kg/h, and fluid type.
