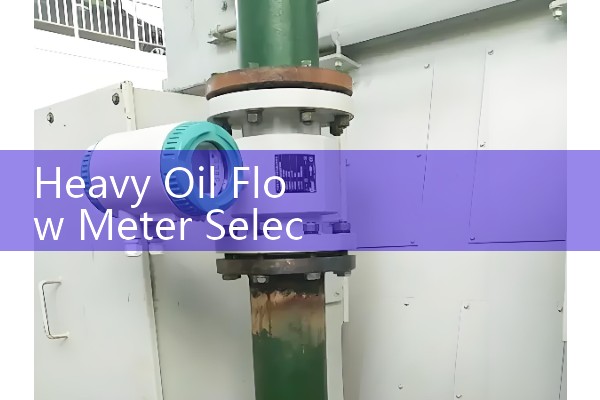

Heavy Oil Flow Meter Selection: Handling Extreme High-Viscosity Crude via Coriolis Mass Tracking
Quick Answer: For heavy crude oil above 5,000 cP, choose a straight-tube Coriolis mass flow meter. This heavy oil flow meter selection guide focuses on mass flow tracking rather than volumetric correction. Silver Automation Instruments supplies heavy oil Coriolis meters from DN15 to DN150. Send us your viscosity in cP, pipe size in DN, flow range in kg/h, and process temperature in °C for a specific model and price.
Why Heavy Oil Breaks Ordinary Flow Meters
Heavy crude does not behave like diesel or light condensate. A crude oil at 50,000 cP has a syrup-like or paste-like flow profile at low temperature. Gear meters wear fast. Differential pressure meters clog impulse lines. Turbine meters under-read because the flow profile is not clean. Vortex meters lose repeatability when Reynolds number drops far below 20,000.
Here is the thing. Most engineers skip the viscosity number in the first datasheet. Then the meter arrives, the line starts, and the reading drifts. We have seen this on customer sites in Vietnam, Nigeria, and Mexico. One Indonesian refinery replaced an oval gear meter after six weeks. The gears were polished smooth by heavy residual oil at 95 °C.
Coriolis Mass Tracking Removes Volume Correction
Because heavy oil changes volume with temperature, a batch measured at 20 °C is not the same volume at 80 °C. The shift can reach 3 to 4 percent. That error hits custody transfer and inventory fast.
A Coriolis meter measures mass directly. The unit reads kg/h or t/h. Density is a secondary output. There is no need to apply a density correction table. There is no need to maintain a temperature compensation loop. That is why refineries track heavy crude with Coriolis mass meters.
Model and Parameters That Fit Heavy Crude
Silver Instruments supplies a straight-tube Coriolis meter for heavy oil. The standard model covers DN15 to DN150. For a DN50 heavy crude line, the flow range is 0 to 30,000 kg/h with an accuracy of ±0.2 percent of rate. The meter handles viscosity up to 1,000,000 cP and process temperatures from -50 to 200 °C. Pressure rating is PN40 or ANSI 300. Output options include 4-20 mA HART, pulse, and RS485 Modbus. ATEX Zone 1 and IECEx versions are available.
Straight-tube design matters. Heavy oil leaves less dead volume and cleans easier. Bent-tube meters can trap waxy deposits after shutdown. If you need steam tracing or electrical heating, tell us in the RFQ. We add a heating jacket and a PT100 sensor.
Pressure Drop and Sizing Rules
Do not size a Coriolis meter for heavy oil the same way as water. At 50,000 cP, a small meter creates high pressure drop. Keep pressure drop under 0.5 bar at normal flow. For high pour point crude, keep line velocity above 0.3 m/s to avoid wax deposition. Set the low flow cut-off high enough to ignore zero drift. A good starting point is 0.5 to 1 percent of maximum flow.
A customer in Basra handles
Where Coriolis Fits and Where It Does Not
Coriolis works for heavy crude custody transfer, reactor feed, blending, and loading skids. It is not always the cheapest. If the oil viscosity stays under 500 cP and the budget is tight, a positive displacement meter may work. But for heavy oil above 5,000 cP, Coriolis wins on long-term stability and maintenance.
One limitation is shutdown. Waxy heavy crude can gel inside any meter if the line is cold. You need steam tracing, heat tracing, or flushing. Install low point drains. Use a bypass line if manual cleaning is likely.
Installation and Signal Integration Notes
Mount the meter in a low stress pipe run. Heavy oil lines often have vibration from gear pumps. Add supports before and after the meter. If the fluid contains sand or catalyst fines, install a strainer upstream. Coriolis tubes are robust but abrasive solids can erode them over time.
For DCS or PLC integration, use 4-20 mA HART. The HART signal gives mass flow, density, and temperature in one pair. Modbus RS485 works well for skid packages. Pulse output suits batch loading. Specify ATEX Zone 1 if the meter is in a refinery or tank farm. Most heavy crude terminals fall into Zone 1 or Zone 2.
What to Send for a Quote
Send us these values in plain text. Fluid name. Viscosity at two temperatures in cP. Operating temperature in °C. Pipe size in DN or inch. Flow range minimum normal maximum in kg/h or m3/h. Pressure in bar. Hazardous area classification. Output signal preference.
We reply with a model number, accuracy statement, pressure drop estimate, and price. This is faster than a long meeting.
FAQ
What viscosity range can a Coriolis meter handle for heavy crude?
Standard Silver Instruments Coriolis meters handle 1 cP to 1,000,000 cP. For heavy oil above 5,000 cP use a straight-tube design and check pressure drop carefully.
Does a Coriolis meter need density tables for heavy oil?
No. The meter measures mass flow directly. Density is a secondary output. You do not need volume correction or temperature compensation loops.
Can Coriolis meters handle waxy crude at low temperature?
Yes with heat management. Keep the meter body above pour point. Use steam tracing or electrical heating. Low flow cut-off also helps prevent false readings.
What pipe sizes do you offer for heavy oil?
DN15 to DN150 standard. Larger sizes up to DN300 on request. For 50,000 cP crude, DN50 or DN80 is common.
How do I request a quote for a heavy oil Coriolis meter?
Send your viscosity in cP, flow range in kg/h, pipe size in DN, pressure in bar, and temperature in °C. Contact Silver Instruments at Tel +86-25-68650347, Whatsapp +86-25-52155837, WeChat +86 15365082610.
