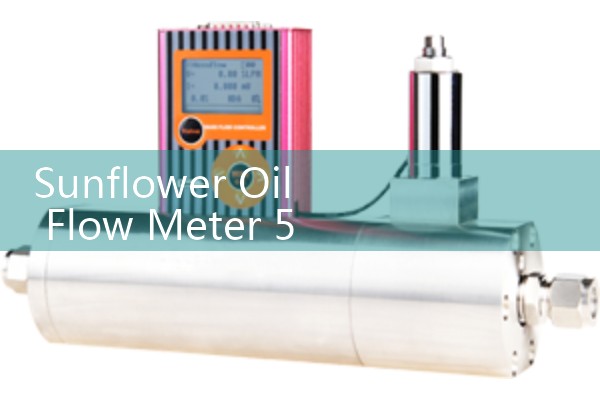

Sunflower Oil Flow Meter 50 m3/h: Legal-For-Trade Compliance in Bulk Food Transfer
Quick Answer: For a sunflower oil transfer rate of 50 m3/h that requires legal-for-trade compliance, we recommend a SILVER SMF Coriolis mass flow meter with DN50 connections, 316L stainless steel wetted parts, and OIML R117 or equivalent national type approval. This meter measures mass flow in kg/h directly, independent of viscosity or temperature changes, and outputs a certified pulse signal for custody transfer. If your process only needs volumetric pulses and the oil viscosity is stable above 40 cP, we also supply a SILVER SR oval gear flow meter DN50 with a PTFE seal and a pulse conditioner tested to local weights and measures standards.
Why a Legal-for-Trade Meter Changes Everything in Edible Oil
Bulk sunflower oil loads move between oil mills, refineries, and bottling plants by road tanker or pipeline. Each batch transfer involves a financial transaction based on the measured quantity. In Australia, Southeast Asia, and the Middle East, national metrology bodies enforce strict accuracy classes, often 0.2% or 0.3% of reading. A meter without a valid type approval certificate cannot be used for buying or selling. Silver Instruments supplies meters that carry factory certificates traceable to OIML R117 for mass, OIML R49 for volume, or local type approvals accepted by customs departments in Vietnam, the Philippines, and Nigeria.
At a flow rate of 50 m3/h, sunflower oil at 30 °C has a viscosity around 45 cP and a density near 920 kg/m3. A volumetric meter will read correctly only if the process temperature and viscosity stay inside a narrow band. In practice, daytime heating on a tanker exposed to sun can easily shift the oil temperature by 8 °C. A Coriolis meter ignores these shifts because it measures mass directly. Most engineers skip the correction tables with a Coriolis meter because the mass reading does not require temperature compensation for the quantity display.
Coriolis vs. Oval Gear: Which One Fits 50 m3/h
Here is the thing: a Coriolis meter and an oval gear meter both work for sunflower oil, but they solve different field problems. We have seen on customer sites many times that a plant manager starts with a positive displacement meter because of the lower purchase cost, then later upgrades to a Coriolis meter when batch reconciliation errors exceed 0.5%.
The SILVER SMF Coriolis meter in DN50 covers a mass flow range from 0 to about 70 000 kg/h, so it handles 50 m3/h of sunflower oil with room to spare. Wetted parts are 316L stainless steel with 316L material certificate, making it acceptable for food contact under EU 1935/2004 and FDA 21 CFR. It provides simultaneous mass flow, density, and temperature outputs via 4-20 mA HART, plus a scalable pulse output for a remote totalizer or a fiscal printer. The transmitter housing is IP67, Ex ia IIC T6 for ATEX Zone 1, and we preconfigure the damping and the low flow cutoff to match the 50 m3/h operating point.
If volumetric measurement is enough and the oil temperature is controlled between 25 and 40 °C, a SILVER SR oval gear flow meter DN50 with a flow range of 8 to 60 m3/h works well. The measuring chamber is machined from cast iron or stainless steel, the oval gears rotate on hard alloy bearings, and the signal comes from a reed switch or a Hall effect sensor giving a raw pulse per liter. A SILVER SRT-1 pulse transmitter converts the raw pulse into a scaled open collector output that is legal-for-trade when sealed and verified by a third-party auditor. A secondary PT100 pocket is included for manual temperature compensation if your inspector requires a corrected volume at 20 °C.
We normally supply the oval gear meter with a strainer and an air eliminator in an assembled skid. This setup removes entrained air that can inflate the invoice volume. A paint manufacturer in Indonesia chose this exact skid for a 40 m3/h crude palm oil loading arm, and after calibration at the local metrology lab, the meter achieved a repeatability of 0.03% over six months.
Installation Practices That Pass Inspection
Legal-for-trade approval does not stop at the meter body. The installation must prevent bypass flows, provide straight upstream and downstream pipe sections per the certificate, and allow in-situ verification without breaking seals. Silver Instruments pre-programs the flow computer parameters and seals the housing with wire and lead seals before shipment.
For a horizontal pipeline with DN65 schedule 10 stainless steel pipe, we reco
The ambient temperature around the transmitter should stay below 60 °C. When the meter is mounted on a tanker loading skid in direct sunlight, we add a sunshade and confirm the terminal wiring through an Ex e junction box. All gaskets in contact with sunflower oil are PTFE or EPDM with peroxide cure, both compliant with food-grade requirements and resistant to swelling in vegetable oil.
What to Send Us for a Firm Quote
To get a fixed price and a delivery lead time for a 50 m3/h sunflower oil flow meter with legal-for-trade compliance, please send us your operating data. Tell us the minimum and maximum flow rate in m3/h or kg/h, the normal operating pressure in bar, the process temperature in °C, the pipe size DN, and the required certificate type (OIML, MID, or local weights and measures). Specify if you need mass measurement or volume measurement, and whether the meter will be mounted on a fixed pipe or a tanker truck. Also tell us your hazardous area classification, for example Zone 1 or Zone 2, and the signal you expect: pulse, 4-20 mA, Modbus RTU, or a combination. We will return a datasheet, an IOM manual draft, and a quotation that includes the flow meter, a strainer if needed, and the calibration certificate.
FAQ: Sunflower Oil Bulk Transfer Meters
What accuracy can I expect from a legal-for-trade meter for sunflower oil? A Coriolis meter from Silver Instruments typically achieves ±0.10% to ±0.15% of rate in mass for flows above 20% of the nominal range. An oval gear unit with pulse output and electrical compensation usually reaches ±0.2% of reading for volumetric flow when calibrated with sunflower oil at the working viscosity. The accuracy stated on the type approval certificate is the minimum standard, but actual field performance is often better when the installation meets the straight pipe requirements.
Does a Coriolis meter need a proving system for sunflower oil? Not always. A fixed mass flow meter used for custody transfer can be verified with a master meter prover or by weighing the offloaded oil on a weighbridge. Many terminals accept an annual verification by a third-party lab instead of an inline prover. We can supply a portable flow comparator kit that connects to the meter pulse output and checks the K-factor against a reference standard without breaking the primary seal.
Can I use the same meter for other edible oils, like soybean oil or palm oil? Yes. The SILVER SMF Coriolis meter measures mass directly, so switching from sunflower oil to soybean oil or palm oil does not change the calibration. Viscosity and density differences have no effect on mass accuracy. For an oval gear meter, you must verify that the viscosity of the new oil stays within the approved range; we can supply a multi-viscosity calibration curve if you transfer several oil grades through the same pipeline.
How long does it take to get type approval documentation? We keep an active library of certificates for OIML R117, OIML R49, and selected national marks like the Philippine DTI and the Vietnam Directorate for Standards, Metrology and Quality. If we already hold an approval that your local authority recognizes, we ship the meter with the certificate inside the box. If a new approval is needed, the process typically takes four to eight weeks, depending on the metrology body workload. We handle the test coordination and supply the required test report documents.
What about CIP cleaning and food safety? Our sanitary Coriolis meter option uses a fully welded 316L tube set with a surface finish of Ra 0.8 μm or better. The meter withstands CIP fluid temperatures up to 130 °C and standard caustic and acid wash cycles. We provide a material traceability certificate to EN 10204 3.1 and a surface roughness report. The oval gear meter can be supplied with a quick-opening cover for mechanical cleaning, but because the gears trap product, we recommend the Coriolis meter for processes that require frequent product changeovers and validated clean-in-place procedures.
