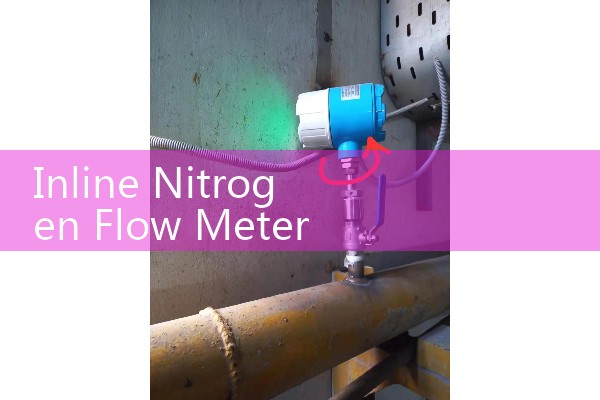

Inline Nitrogen Flow Meter: Thermal Mass Gas Purging Consumption Controls
Quick Answer: Inline thermal mass flow meters measure nitrogen mass flow directly, without needing temperature or pressure compensation. They deliver reliable low-flow measurement for gas purging and help you track consumption in real time. Many plants reduce nitrogen waste by 15 to 30 percent after installing these meters.
Why Thermal Mass Technology Fits Nitrogen Purging
Nitrogen purging protects tanks, pipelines, and reactors from moisture and oxygen. In food packaging, chemical blanketing, and electronics soldering, the gas flow must be stable but never excessive. A thermal mass flow meter senses the cooling effect of gas moving past a heated sensor. It gives a mass flow reading in standard cubic meters per hour or kilograms per hour. Because the sensor is directly in the pipe (inline), there is no bypass or insertion probe drift. This inline design works well on small lines like DN15, DN20, and DN25 that are common in purging circuits. Silver Automation Instruments supplies inline thermal mass meters with a PT100 temperature reference and fast response for on-off purge cycles.
Real Savings: A Thailand Electronics Plant
A contract electronics manufacturer in Chonburi, Thailand replaced six glass-tube rotameters with our inline thermal mass flow meters on a wave soldering nitrogen tunnel. Before the change, operators set the purge flow by eye and left the valve open. There was no feedback when nitrogen supply pressure changed. After installing the meters, the plant measured actual consumption every second. They found that idle purge flow could be cut by 40 percent without affecting oxygen levels. Over three months, nitrogen costs dropped 18 percent. The 4-20 mA output went straight to a paperless recorder from Silver Automation Instruments, giving the QA team batch records for every production run. This is the kind of detail we hear from customers in Southeast Asia regularly.
Inline Meter Sizing for Your Purge Line
Inline meters need a matched pipe diameter. We offer sizes from DN15 up to DN100 for nitrogen service. The sensor element is wetted with 316L stainless steel, safe for clean dry nitrogen. When you ask for a quote, send us four pieces of data: operating pressure in bar, gas temperature in Celsius, pipe size DN, and the minimum and maximum flow rate you need to measure. Many engineers forget to share the minimum flow. In purging, you often need to detect almost zero flow to confirm the valve is closed. The thermal mass meter can measure velocities as low as 0.1 Nm/s if sized correctly. We recommend selecting a full scale close to your peak purge flow to keep the turndown ratio useful. A meter for a DN25 nitrogen purge line in a chemical reactor typically handles 2 to 100 Nm3/h. Silver Automation Instruments can guide you through the sizing spreadsheet to avoid oversizing.
Common Pitfalls and How We Avoid Them
Moisture in nitrogen causes erratic readings on thermal sensors. We us
Output Signals and Plant Integration
The standard output is 4-20 mA plus RS485 Modbus RTU. HART protocol is an option on request. Most customers in Latin America connect the 4-20 mA to their PLC or DCS and use Modbus to read totalized mass for monthly nitrogen consumption reports. We also supply a local display with keypad so operators can see flow rate and total right at the pipe. In a water treatment plant in Saudi Arabia, the inline nitrogen meter on a membrane degasser sends flow data via Modbus to the SCADA and triggers an alarm if purge flow drops below a set point during CIP cycles. This kind of direct alarm prevents membrane damage.
Get a Quote for Your Nitrogen Flow Meter
If you need an inline thermal mass flow meter for nitrogen or any dry gas, send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will reply with a data sheet and price within one business day.
Contact Silver Automation Instruments:
Email: [email protected]
Tel: +86-25-68650347
WhatsApp: +86-25-52155837
WeChat: +86 15365082610
Frequently Asked Questions
1. Can the inline meter measure nitrogen at very low pressure? Yes. Thermal mass meters need only a low pressure drop. We have units working at 0.3 bar g on tank blanketing lines. Just specify the minimum pressure.
2. How often does the meter need recalibration? Most users run three to five years before sending the meter back for recalibration. Nitrogen is clean, so sensor drift is slow. We offer recalibration with traceable certificates.
3. What pipe materials are required? The meter body is 316L stainless steel. Standard process connections are wafer type or flanged. You can match your existing stainless steel or PTFE-lined purge pipe easily.
4. Is the meter approved for hazardous areas? We offer ATEX Zone 2 and IECEx certification for gas. Options for Zone 1 with intrinsic safety are also available. Tell us your zone requirement when you inquire.
5. Can I use the same meter for argon or CO2 purging? Yes. We calibrate for the specific gas. Tell us the gas type and mix ratio if it is a blend. Silver Automation Instruments can switch the calibration factor via Modbus for multi-gas use.
