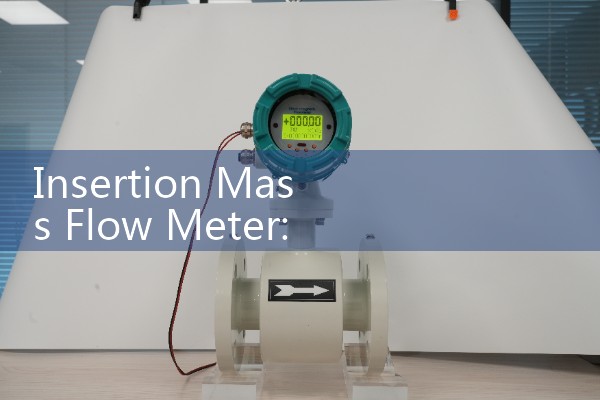

Insertion Mass Flow Meter: Retractable Gas Line Thermal Probe Manuals
Quick Answer: This document explains the key points from the insertion thermal mass flow meter manual for retractable gas line probes. You will learn how to install and maintain the probe under pressure without shutting down the line. It covers the correct sensor orientation, wiring for 4-20 mA HART and Modbus RTU, and required straight run distances.
Why the Retractable Design Matters on a Gas Line
Most engineers who handle natural gas, compressed air, or biogas systems ask the same question. They want to know if they can remove the flow meter probe while the pipe is under pressure. With a retractable probe assembly the answer is yes. The manual describes a hot tap procedure using a ball valve and isolation chamber. You attach the retractor tool, open the valve, and slowly pull the probe out through the valve body. Then you close the valve. This works on pipelines up to 16 barg if the mechanical lock is engaged. We have seen this save hours of downtime at a petrochemical plant in Thailand that measured flare gas header flow.
Sensor Orientation and Flow Disturbance
The insertion probe has two PT100 RTD sensors. One is a heated velocity sensor and the other is a temperature reference. The manual specifies that the sensor tip must sit exactly in the pipe centerline for DN80 to DN600 lines. Use the depth marking on the probe shaft. If you install the meter on a DN100 pipe the insertion depth should be 50 mm from the inner wall to the sensor center. Any offset can cause a 3 to 8 percent reading error at low flow below 5 m/s. The flow direction arrow on the connection head must align with the gas flow. Here is the thing. Many installation failures on compressed air networks in Vietnam happen because the arrow points the wrong way but the 4-20 mA signal still looks plausible.
Wiring and Signal Outputs
The transmitter accepts 24 VDC power and offers two output channels. You can configure Channel 1 for 4-20 mA HART and Channel 2 for RS485 Modbus RTU. The manual includes a wiring table for M20 cable gland entry. Connect the red wire to +24V, black to GND, white to current loop positive, and green to RS485 A. The shield must connect to the internal ground lug only. Do not connect the shield at the DCS end. This prevents ground loops that cause noisy readings at gas flow below 2 Nm3/h. Many systems integrators in Malaysia skip this and then call our service team about fluctuating signals.
Calibration and Gas Correction Factors
The meter leaves the factory calibrated for air at 20 Deg C and 1.013 bar absolute. When you measure natural gas or nitrogen you must adjust the correction factor. The manual provides a K factor table for 12 common gases. For methane the K factor is 0.83 relative to air. For carbon dioxide it is 0.70. You can enter this value on the local 2-line LCD display using the three-button keypad. The transmitter then recalculates mass flow in kg/h or Nm3/h. We recommend a field zero check every six months on dirty gas applications like landfill biogas. Close the isolation valve, remove the probe, and verify the zero point on the display reads below 0.5 percent of full scale. A sugar mill in Queensland uses this routine on their biogas digester line and gets stable readings for 18 months before a recalibration is needed.
ATEX and Hazardous Area Compliance
If your gas line runs in a Zone 1 or Zone 2 area the manual lists the ATEX and IECEx markings clearly. The standard transmitter carries Ex db IIC T4 Gb for
Maintenance Cycles and Spare Parts
The retractable probe has two O-rings and a graphite packing ring that need replacement every 24 months on clean gas lines. For applications with hydrogen sulfide or amine traces replace the O-rings every 12 months. The manual includes a cross-section drawing with part numbers. You can order a kit that contains the PT100 sensor pair, O-rings, and packing ring as one part number. Because the probe is retractable you do not need a full plant shutdown for this swap. A wastewater treatment operator in Chile does this on their digester gas line during a lunch break. The total downtime is less than 15 minutes.
Commissioning Checklist from the Manual
Before you energize the transmitter run through these steps. First confirm the insertion depth matches the pipe schedule. Second check the flow arrow against actual gas flow direction. Third verify the power supply is 24 VDC plus or minus 10 percent. Fourth set the gas correction factor on the display. Fifth confirm the 4 mA corresponds to 0 kg/h and 20 mA to your upper range value. Sixth check the Modbus register 40001 reads a stable flow value. Most engineers skip the sixth step but it catches communication timing issues early.
FAQ
Can I retract the probe on a gas line at 10 bar pressure? Yes. The retractor tool is rated for 16 bar maximum. Always follow the manual hot tap procedure and wear face protection against gas release.
What straight run does the insertion meter need? The manual calls for 15D upstream and 5D downstream from any elbow or valve. If you have a control valve place the meter at least 30D upstream. Otherwise the swirling flow causes a negative bias of up to 10 percent.
Does the probe work on wet biogas? The standard probe tolerates non-condensing moisture up to 95 percent RH. If you see liquid droplets in the gas stream install a condensate trap upstream. The manual explains that water drops hitting the heated sensor cause spike readings above 20 mA.
How often do I need to clean the sensor? In clean natural gas you clean it once a year. In flare gas with particulates clean the sensor every 3 months. When you retract the probe carefully wipe the sensor head with isopropyl alcohol and a lint-free cloth.
Can I use the same transmitter for two different gas compositions? Yes. You can store up to four gas profiles in the transmitter memory and switch between them via Modbus or the keypad. A chemical plant in Kenya uses this feature for nitrogen purge and hydrogen feed on the same DN150 line.
